- Size: 166
- Place of Origin: Jinan,Shandong
- Brand Name: ACME

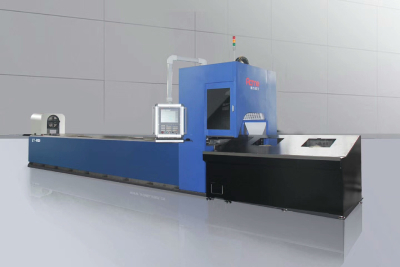

- Model Number: ACME LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
I. Production Capabilities
Acme LT-6020 gives us the flexibility to handle jobs of all sizes.
Whether you need a long manufacturing run, a short run for a custom job or just-in-time production, Acme Tube Laser can help. Our laser cutter accommodates tubing in a wide range of sizes. Round, square and rectangular tubes, angle and channel steel and special shapes can be processed using this technology.
II. Why acme tube laser?
l Precision: When anything has to be done by hand, the chances of human error increase – even more so when the worker doing the cutting lacks the skills and experience necessary for the job. Laser tube cutting machine not only eliminates human error; it relieves you of having to pay top-dollar for a highly experienced worker.
|
l Speed: Before tools like the Acme Tube Laser, tubes had to be processed by hand. To achieve precision, workers had to cut very slowly. As a result, processing a tube could take hours. The Acme Tube Laser has reduced this time to mere minutes.
|
l Efficiency: Laser tube cutting machine deliver ready-to-assemble, turnkey parts. The machine can laser cut parts with a tab and a slot so that you can snap them together and weld them without having to build a jig and a fixture to hold them in place.
|
l Excellence: The precision you get with laser tube cutting isn’t just about making cuts that meet print. Our laser tube cutting machine LT-6020 makes clean cuts, eliminating the need for deburring. |
III. KEY FEATURES
l Automatic set-up and run
l Round, rectangular, square and other profiles are standard
l Standard components for easy service and maintenance
l Random standard length
l 2kW IPG resonator
l Lantek programming software
IV. PERFORMANCE-ENHANCING OPTIONS
l Bundle feed
l Seam detection system
l Outfeed conveyor system
- Size: 166
- Place of Origin: Jinan,Shandong
- Brand Name: ACME
- Model Number: ACME LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Name | Brand |
1. | Laser Source | Germany IPG |
2. | Cutting head | Raytools/Precitec |
3. | Cutting system | Germany PA8000, Lantek/Gamma nesting software |
4. | Electrical control | Schneider |
5. | Pneumatic Control | SMC or Airtac |
6. | Linear guides | Taiwan Hiwin |
7. | Gear and rack | Taiwan YYC |
8. | AC servo motor and driver | Yaskawa |
9. | Reducer | France MOTOVARIO |
10. | Chiller | Tongfei |
11. | Chuck | Pneumatic chucks, automatic centering |
12. | Dust removal and filtration devices | Optional |
13. | Automatic feeding device | Optional |
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube and so on
|
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail（Waste） length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm(customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-200mm (customized order acceptable) |
20. | Laser tracking system | Automatic follow-up |
