- Size: 166
- Place of Origin: Jinan,Shandong
- Brand Name: ACME
- Model Number: ACME LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :

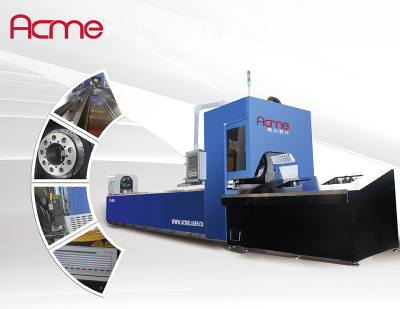

Laser Cutting Steel Tubes Machine
ACME Laser Cutting Steel Tubes Machine are designed for high production tube fabrication. It provide efficient processing of Round, Rectangular, Square, Oval and all kinds shapes of metal tube, even the Angle steel, Channel steel also can be cut at optimal speed using a fiber laser. The integration of leading-brand components assures you of top performance and high reliability. Machines are engineered for quick set up of different tube sizes and built for easy of service and maintenance.
Features
Ø 500W--4KW laser source
Ø Automatic set-up and run
Ø World famous components for easy service, low failure rate and maintenance
Ø Under thickness 25mm, it has a great fast cut speed and high cut precision.
Ø Photoelectric conversion rate more than 25%, more power-saving.
What the machine can do
High precision cutting and processing metal tube and pipe
Carbon steel, Stainless steel, Aluminium, Brass, Copper and other metal material tubes.
Round, Rectangular, Square, Oval and all kinds tube shapes.
Machine Details and Advantage
1. 16-25mm whole steel plate weld strong machine bed made by FINCM. Milled by COLGAR, Aging and Heat treatment.
More Stable and Reliable than pipe weld machine bed which other suppliers normal use.
2. Self-centering Collet Chuck
The collet chucks position and hold your tubes in place without damaging the materials. The self-centering clamping system with continuous sensor monitoring adapts to every tube geometry. This means you benefit from high part precision.
3. A Constant View of the Machining Process
With the large window, the machining process of automatic tube laser is perfectly visible.
4. Automatic Stepped Rollers
The step rollers support the tubes while also moving them sideways, and adjust automatically to various diameters.
5. Germany PA8000 Control System
The original imported control system is very stable and reliable. With Acme design of panel surface, it is easy to face any direction that is convenient for the operator.
6. 3.5 Meters Long Material Unloading Platform
Longer than 2.5 meters standard unloader, very effective for most tube loading. If it need, we can add another group of unloader.
7. Automatic or manual loading system from the back of machine--PATENT DESIGN
15-20s loading time, more faster than 60s side loading which other supplier use.
FAQs
What about payment term?
1.T/T 2.L/C 3.Trade Assurance
Package and Delivery
Fumigation-free plywood wooden box and pallets with iron binding belt.
Delivery within 30 working days after deposit
What about guarantee and service?
1. Two years guarantee of the whole machine except consumable parts.
2. CE and FDA certificate,the machines are produced according to standard.
3. We have excellent English speaking engineers. They can help you locally.
4. 24 hours online service
More video&photo details please contact: Eric Liu WhatsApp/WeChat 0086 15662723162
- Size: 166
- Place of Origin: Jinan,Shandong
- Brand Name: ACME
- Model Number: ACME LT-6020
- Weight: 12000.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
- :
- :
No. | Item | Parameter |
1. | Maximum Travelling speed | 70m/min |
2. | Laser wavelength | 1070-1080 nm |
3. | Minimum cutting width | 0.2mm |
4. | Rated output power | 10--100% (100W-1000W) |
5. | X And Y axis positioning accuracy | ≤±0.03㎜ |
6. | Repeat positioning accuracy | ≤±0.02㎜ |
7. | Available cut pipe shape | Round tube, square tube, rectangular tube Oval tube, fan-shaped tube,angle steel, channel steel and so on |
8. | Acceleration | 1G |
9. | Oiling systems | Automatic oiling |
10. | Tail(Waste) length | 200-250mm |
11. | Effective length of cutting | 6000mm/8000mm/10000mm(customize dorder acceptable) |
12. | Size | 11*3.9*2.5m (Length * width * height) |
13. | Power | 35KW |
14. | G.W. | 10 Ton |
15. | Power supply | 380v50Hz ±10% |
16. | Red Positioning | Yes |
17. | Auxiliary gases | Oxygen, nitrogen, air |
18. | Supported file formats | IGS (Available PRO/E. UG, Solid works Photo) |
19. | Diameter | 20mm-320mm (customized order acceptable) |
20. | Laser tracking system | Automatic follow-up |
